Custom Entity Screen command button value

Version 4
1

I have a Custom Entity Screen that I have made to my liking. It shows 3 entity buttons (which are actually 3 tables) Take Away, Pickup & Delivery.
Below that I have 3 Ticket Lister widgets to show open tickets from the respective tables/buttons.

Screen Shot 2015-09-08 at 4.56.20 pm.png1136×708 102 KB

I now need a button to add a ticket to one of the 3 entities.
eg: New Delivery button should call Add Ticket, but set Table as Delivery automatically.

Screen Shot 2015-09-08 at 4.56.57 pm.png1133×703 144 KB

Is it possible to do this in this property editor values?

2

You can use Change Ticket Entity action to assign tables to your tickets.

3

I wanted to pass the table entity info to that button. Is that possible using just this screen?
Is there a post on how to use the Change Ticket Entity action?

4

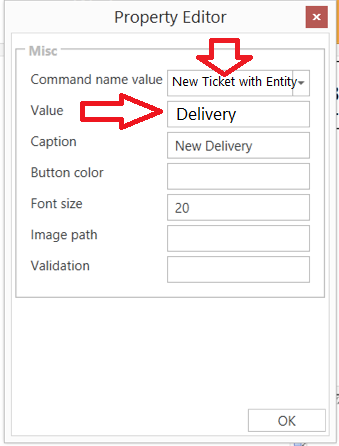

You could pass the Table name as the Command Value …

Create a parameterized Action for Change Ticket Entity Action …

Create a Rule to handle the button click …

Pasted image844×445 31.5 KB

Now you can add more buttons to your Entity Screen to call the same Command (Add Ticket), but use a different Command Value.

1 Like
5

I did this but the value is not being passed. :frowning:
It just opens up a new ticket without the table / entity value.

6

Ok, I thought that may happen, and it is likely because of a a conflicting Rule. It is actually passing the Value, nonetheless. You must have an Entity of the name Delivery for this to work you realize.

There is already and Automation Command and Rule for Add Ticket.

Pasted image774×216 14.1 KB

Pasted image850×411 23.9 KB

I suggest changing or creating a new Automation Command, of a different name, something like New Ticket with Entity …

Pasted image722×569 29.4 KB

Now change your Rule to look for that button…

Pasted image924×450 28.4 KB

And of course, change your Ticket Lister Widget to use that Command as well…

1 Like
7

That worked. I just needed to add a Create Ticket action in the New Ticket - Assign Entity rule.

new_tick1.jpg1134×768 76.8 KB

Now it works beautifully. :slight_smile: Thank you!

Please set issue as RESOLVED. :smiley: :clap:

8

Small issue. Using the action command buttons increments the ticket count by 2.
Adding a ticket via entity button increments the count correctly by 1.
I think an extra ticket is being created and closed, but I dont know where to go look for it.

tick_num1.jpg1033×705 165 KB

9

Instead of placing a Create Ticket Action in your Rule, try a Display Ticket Action instead.

1 Like
10

Yup, that worked. Many thanks. :smiley:
