Floor plan image not showing on terminals

Happy new year SambasPOS family in this forum.

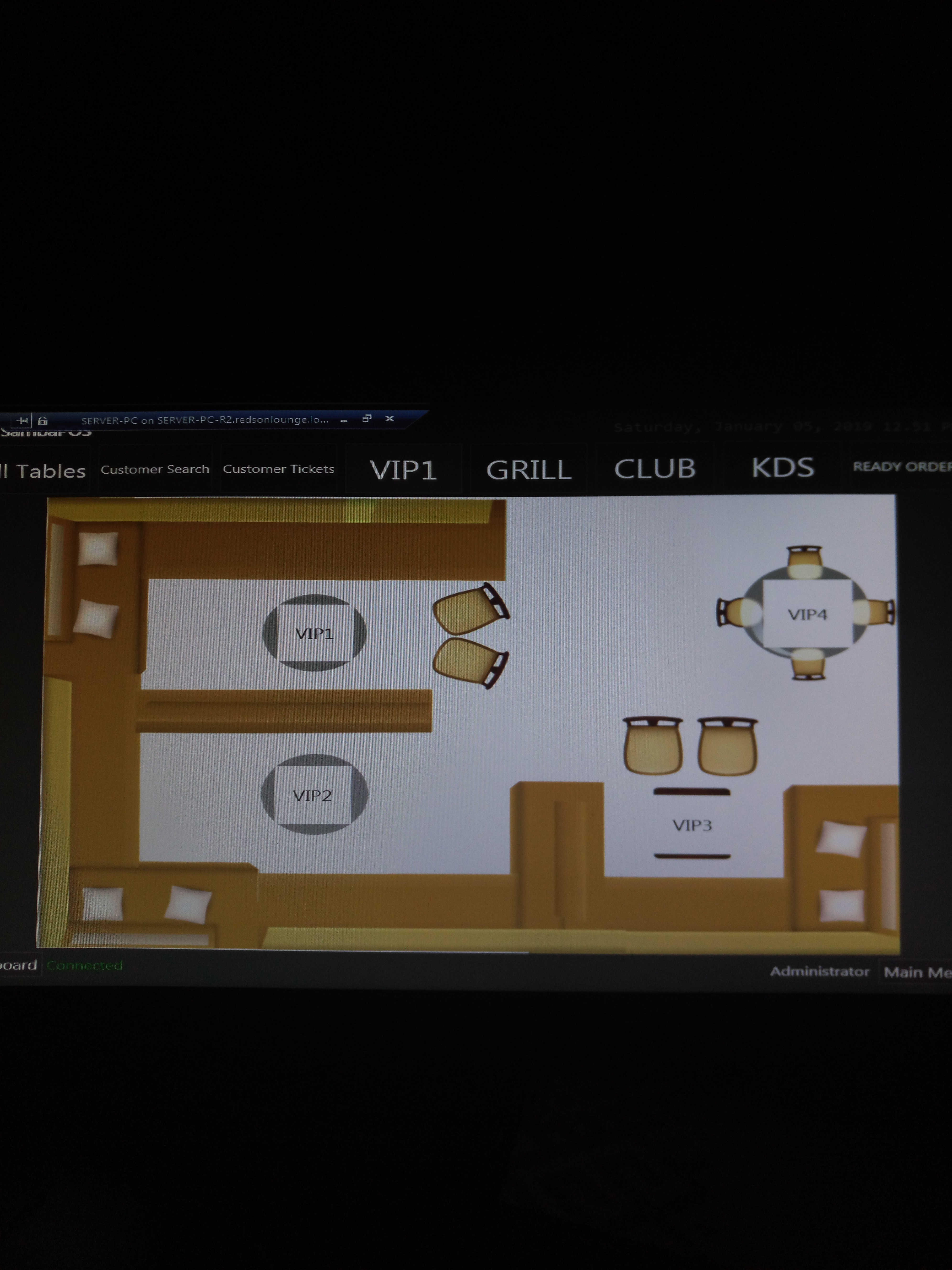

I create entity screen with floor plan image. It work well on my server the image and the entity button are well placed.

But, viewing that same entity on my order terminals, I only see the entity button no image at the background.

What can I do to fix this?

Have you got the image saved on each terminal in the same place/folder?

You’ll need to create the exact same pathway and save in exactly the same place on all terminals as the images are read from the terminal not from the database

1 Like

Thanks you so much, your post was helpful.

1 Like

@RickH please come to my rescue. I was able to get all the images to be shown on all terminals following your instructions.

Now, if an order is placed on table 1 terminals 1, the cashier in terminal 2 will not be able to see the order on the table 1, unless she goes to the open tickets window before she can see it.

What can I do please?

Hav you got message service setup

Yes, I have. Other entity works well but only those with images does not work

Your list of entity screens are different. Is that on purpose? Definatley on same DB. Same entity type? etc?

My entity is the same, but order taken in terminal one does not reflect on cashier terminal, untill she clicks on ticket.

Show your message server settings

This may not be the issue, but the recent Microsoft Windows update (KB4480970) is not allowing shared access to the host machine on some computers. For my case I am running Windows 7 (it may effect Windows 8 also) and I spent 3 hours trying to figure out why I couldn’t access a shared folder. I could access the SQL database just fine and ping the machine, but Windows Explorer would not allow me into the machine from another computer.
