Urgent ... Weird behaviour when incrementing system variable

Hi,

I have an urgent problem to solve.

From that topic, I use:

Action Increment SN - Update Program Setting

  • Setting Name: SerialNumber
  • Setting Value: 1
  • Update
  • Type:Increase
  • IsLocal = False

Action Update TT - "Update Ticket Tag"

  • Tag Name: MyNumber
  • Tag Value: {:SerialNumber}

Rule - I use these 2 action in the ACM Auto Print Rule for Cash:

  • Event : Payment Process

  • Match : Payment Type Name = Cash

  • Match Remaining Amount < 0.09

  • Action - Increment SN

  • Action - Update TT

  • Action - ACM Execute Auto Print For Cash

This is for Cah, I did the same for Credit Card and Account


Expected behaviour:

Every time a ticket is settles (Cash/Credit Card/Account):

  • the Serial Number should be incremented by 1
  • The MyNumber TicketTag should be updated with the new SerialNumber
  • The ticket should be printed

However I can have 2 or 3 Tickets printed with the same SerialNumber …
Lots of handwork to correct.

I think @QMcKay wrote something about not modifying a variable and and tagging it in the same rule but I am not sure

That’s urgent I am live

Marc

(we are working with tablets remote conection to a single windows computer and samba is running on 2 or 3 windows users on that computer.)

Don’t do that ^.
Don’t hard-code things like Program Settings into an Action.
Instead, use a [:variable] for Action Parameters, and set the Parameter for the Action in the Rule.

Make your action like this:

Action Update TT - "Update Ticket Tag"
Tag Name: MyNumber
Tag Value: [:serialNumber]

Remove that ^ Action from your Rule, and Save the Rule.

Open the Rule and add the Action back in. You should now see a field for serialNumber in the Action.

Put {:SerialNumber} or {SETTING:SerialNumber} in that field.

Save the Rule.

thanks …
I think I kindof understand
as I am live, a question:
MyNumber is right now :160785

Doing what you say, the serial number will still be incremented FROM that value?

Thanks again, Marc

Yes. The Program Setting is stored in the Database when IsLocal=False.

You are not changing that Action anyway (not that it would matter in this case); you are only changing the Ticket Tag Action (and the Rule to use the updated Ticket Tag Action).

Ok, solved … now I have to correct 1000 tickets manually …

My problem was different but in any case I am using your way of doing (variable) now to update a ticket tag.
My problem was:

When cash, rule was:

  • i++
  • iTag the ticket
  • Print

When Credit Card, rule was:

  • iTag the ticket
  • i++
  • Print

So my mistake …

Thanks!

:slight_smile:
Every error is good :slight_smile:
Now I look at the export-to-csv report to get all the errors I made

@emre

There is more than that …

Here is what I have:

  • Date
  • SambaPOS Ticket Numer
  • My own Ticket number (MyNumber), a Ticket Tag (IsLocal:false)
  • Ticket Total Amount

MyNumber is generated at payment time, when automatic printing.
(Btw the 2 bills of 75.00 are really 2 different bills, it’s a coincidence if they are the same amount, it is not twice the same ticket.)

Now we can see that MyNumber (which should be unique) is repeating.
Waitresses work on 2 Tablets that RDP to different windows users on a single computer.

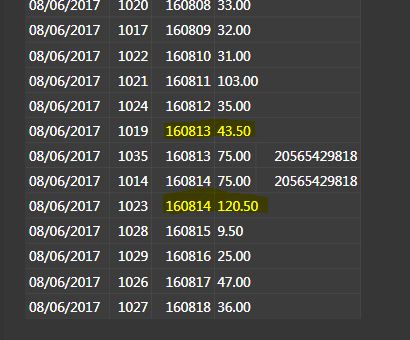

  • 1019 - 160813 - was closed at 18:43 by Tablet 1 > User 1 (the first yellow)
  • 1035 - 160813 - was closed at 19:20 by Tablet 1 > User 1
  • 1014 - 160814 - was closed at 19:21 by Tablet 1 > User 1
  • 1023 - 160814 - was closed at 19:01 by Tablet 2 > User 2

So:

{SerialNumber} = 160812

18:43

tkt 1019 closes with MyNumber at 160813 by tablet 1
Variable {serialNumber} = 160813 (OK, it has been incremented by 1)

19:01

tkt 1023 closes with MyNumber at 160814 by tablet 2
Variable {serialNumber} = 160814 (OK, it has been incremented by Tablet2)

19:20

tkt 1035 closes with MyNumber at 160813 by tablet 1
Variable {serialNumber} = 160813

It looks like that tablet 1 still think half an hour later that the global variable is 160812, increment by 1 and print.
I am lost …

I am digging, I will restart the whole système and watch the ticket closing … hope that by tomorrow the problem has solved because this ticket number is really important.

More information.

1 computer running windows 7
5 users (4 waitresses + the server)
Only 1 terminal defined (the default : Server)
Other user has no special terminals defined (Terminal Name : blank) after double check this is NOT TRUE (Terminal Name = Server)

I have this problem ONLY when 2 waitresses are working at the same time.
When only one waitress works, MyNumber are serial without double.
Here is an example, I also check for the 9 days, same behaviour.
one user ok (yelow)
two users double

Some questions:

  • It looks like they each have their “own” global variable, Does IsLocal:False work ? Where can I check that setting (SQL?)
  • The above is not exactly true because when a waitress clocks in, she’ll start with the “correct” number, then will come the issue.
  • Do I need to setup the message server/client?
  • Do I have to configure the local settings for each windows user (make different terminal)? I use same printers for everybody.
  • Is {:SerialNumber} = {SETTING:SerialNumber}?
  • How to sql the {SETTING:SerialNumber}?

Marc

No they dont have their own value unless you set it to do so.
IsLocal: False works.
You can use SSMS to open Program Setting Table. Or GQL or Show Message to read the number.

Don’t think it has something to do with that.

So I think you tag the ticket and the rule not update serial number right away. Make sure right after you tag the serial number and you have action to update it right away.

Here are my actions/rules, there is not that much.

Do I create an issue topic?

Theoretically yes, though I rarely ever use the short-form, since I am used to that form being Local rather than Global (throwback to older versions). You can force selection of Local (read fro memory) or Global (read from DB) Program setting with:

{LOCAL SETTING:SerialNumber}
{GLOBAL SETTING:SerialNumber}

Global Settings are stored in the DB Table named [ProgramSettingValues]

1 Like

I replace with {GLOBAL SETTING:SerialNumber}
Up to now it works … no more double numbers:
Numbers in yellow are generated since I have done that change.

I’ll confirm later tonight with more data.

That also means that IsLocal : False does not work or that I understand it bad.

Btw : I did so for a friend’s restaurant 3 years ago, but V4, and I had no issue.

@QMcKay I might need your db skills tomorrow as I’ll have to modify about 1200 ticket tag in the database :slight_smile:


:rage:

IsLocal=False does work. Never had any issues with it in 5 years. Possibly you have an old version of the Action cached in the Rules. Remove the Serial Update from the Rules, save the Rules, add the Actions back in, and Save the Rules.

V4 way a long time ago :stuck_out_tongue_winking_eye: and much has changed. I suppose it is possible that some optimization is creating a race-condition and the update is not occurring fast enough before the Ticket is Tagged.


##Try this:

Another way to increment a value (and the way I always do it), is like this:

1 Like

wtf is happening …

How does this ms sql server works?
Each windows user make some transactional table before updating the database?
It smells rare
Times are the same for the 4 windows users (Lima)
(I cannot test … I have to wait to have real tickets and check them … it takes time)

I print out a report at 14:04

I generate the Serialnumber in PaymentProcessed so at the closing-for-ever time of the ticket, which is the time I can see in the ticket list Op-Cls column

I print out a report at 16:37

It has newlines in between the previous report

Sumary:

Report printed at 14:04 and 16:37 (scan)

Ticket list with Op-Cls Column

In case of here is my report:

{REPORT TICKET DETAILS:T.LastPaymentDate,T.TicketNumber,TT.SunatNumber.asc,T.TotalAmount:}

Are you merging tickets?

yes it happens often

So if you merge a ticket the original ticket stays there but will be blank.

A merged Tickets will leave Tickets with 0.00 balance so you can see them pretty clearly in the Ticket Explorer.


I am wondering if your Rules are not in the correct order for what you are trying to do.

Maybe you need to move the Ticket Tag assignment into another Rule or something. Rule ordering can be important sometimes though.

We have:

Payment Processed
Before Ticket Closing
Ticket Closing
Ticket Closed

We also have an Action for Mark Ticket Closed. This is probably only in a single Default Rule named Ticket Payment Check which is a Before Ticket Closing event.

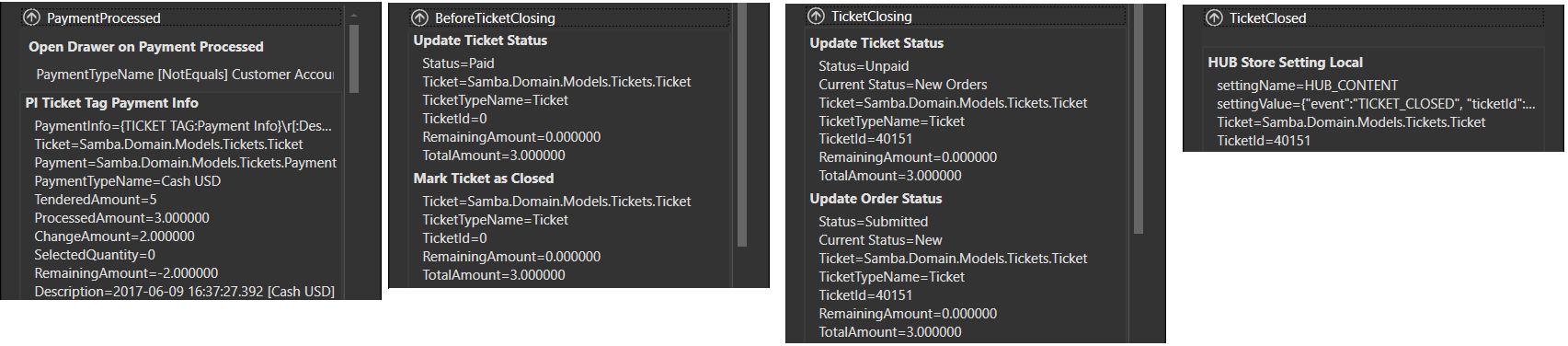

Looking at Rule Debugger, we can see which event comes before which when a Ticket is fully Paid, and it is the same order as I listed above. You can ignore the Automation Command Executed Rules

Pick out important Rules and Actions … There is a lot more going on in my system during these Events; this is just an example… can you see anything strange in your Debugger?

1 Like

Yes but
these tickets in the post are not blank
the blank ticket are not printed

Or is it that
the merge tickets goes through the PaymentProcessed method but are not printed because total amount = 0 ?

In these case I still don’t understand why I got a previously assigned number.

Rule debugger ?? a new thing to watch at … Where is this?

1 Like

Using a global program setting value as a serial number works very well. I use it in my setup daily without a hitch. The actions work just fine and its not something with MS SQL. It more than likely is something with your rule configuration or actions or combination of the both. It can be anything really. We just need to figure it out.

1 Like

Using program setting to do what you are attempting to do can be tricky if you have a complex flow with multiple terminals. Remember it is fully dependant on your rule flow and what the event does and how it interacts with the built in hard coded system to prevent duplicate tickets if two different terminals taking orders at same time.

If you are merging tickets… you need to account for that with your system that you built. Same thing with any other automation you might be doing.

I may have missed this a long time ago but you are aware that we have {TICKET ID} which is a unique number not the same as {TICKET NO} right? Every ticket is assigned a unique TICKET ID even the voided or merged tickets.
