Ask question and show message question

JTRTech · October 16, 2015, 7:59pm

Sorry, just use command name and not value for that step, and match command name rather than value as the rule event constraint.

Johnson_O · October 16, 2015, 8:03pm

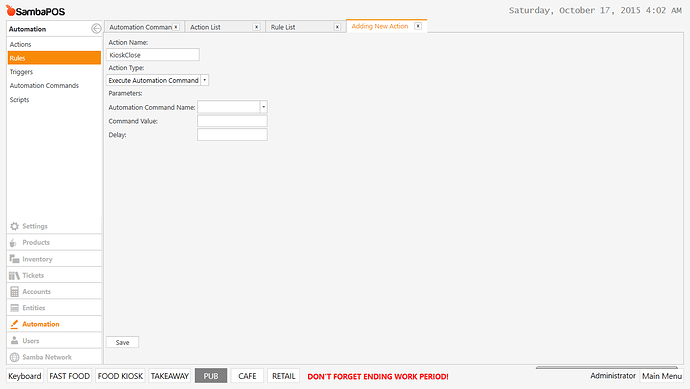

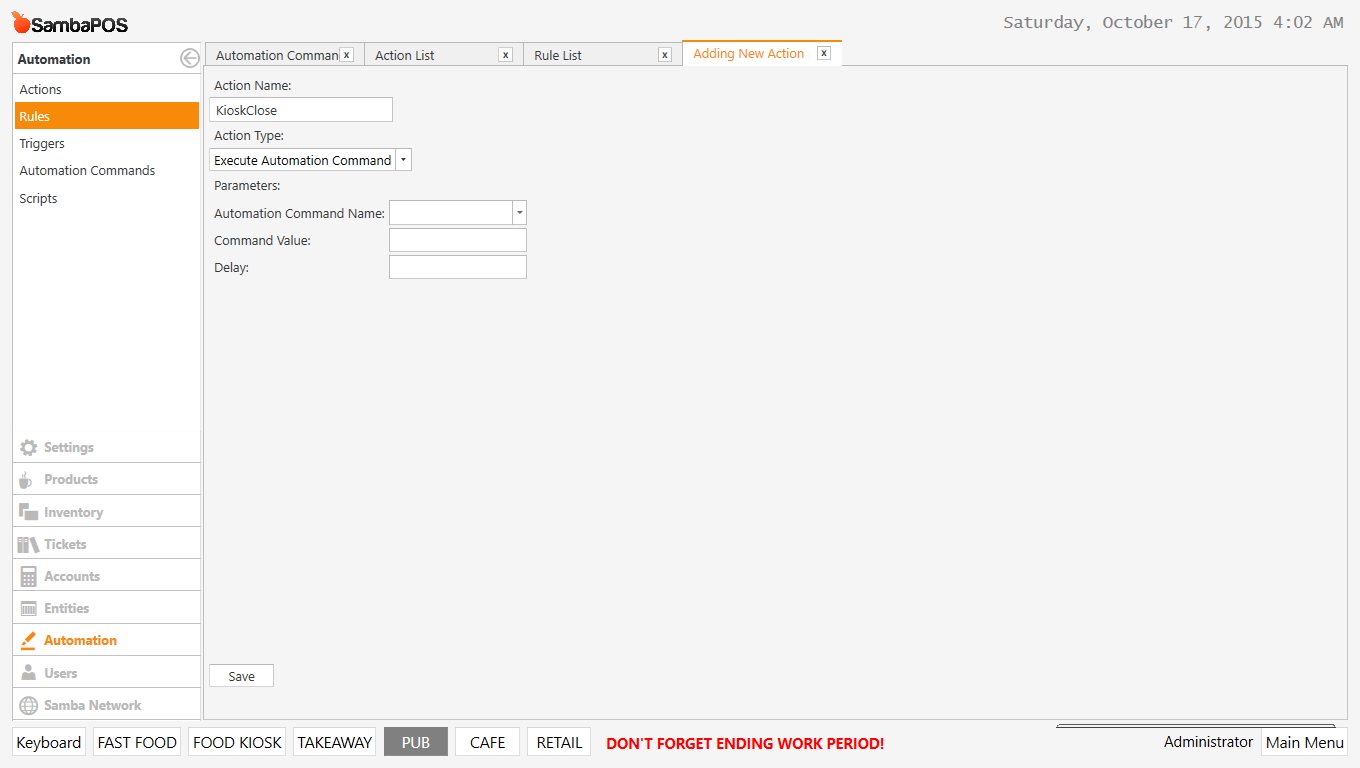

sorry im a little lost here. please correct me if im wrong on the steps to take for creating KioskClose

Create action type “KioskClose”
Select Automation execute command under " Action Type"

and what do i have to enter under the 3 fields？

JTRTech · October 16, 2015, 8:06pm

Name can be whatever you want, put KioskClose as the command value and use that as your constraint Command Name equals KioskClose in place of print bill on you screenshot rule.

JTRTech · October 16, 2015, 8:46pm

Manage to get it sorted?

Johnson_O · October 17, 2015, 2:49am

Let me try it out. For the cancel rule, there will be no action rules? So i will just need to add custom constraints ?

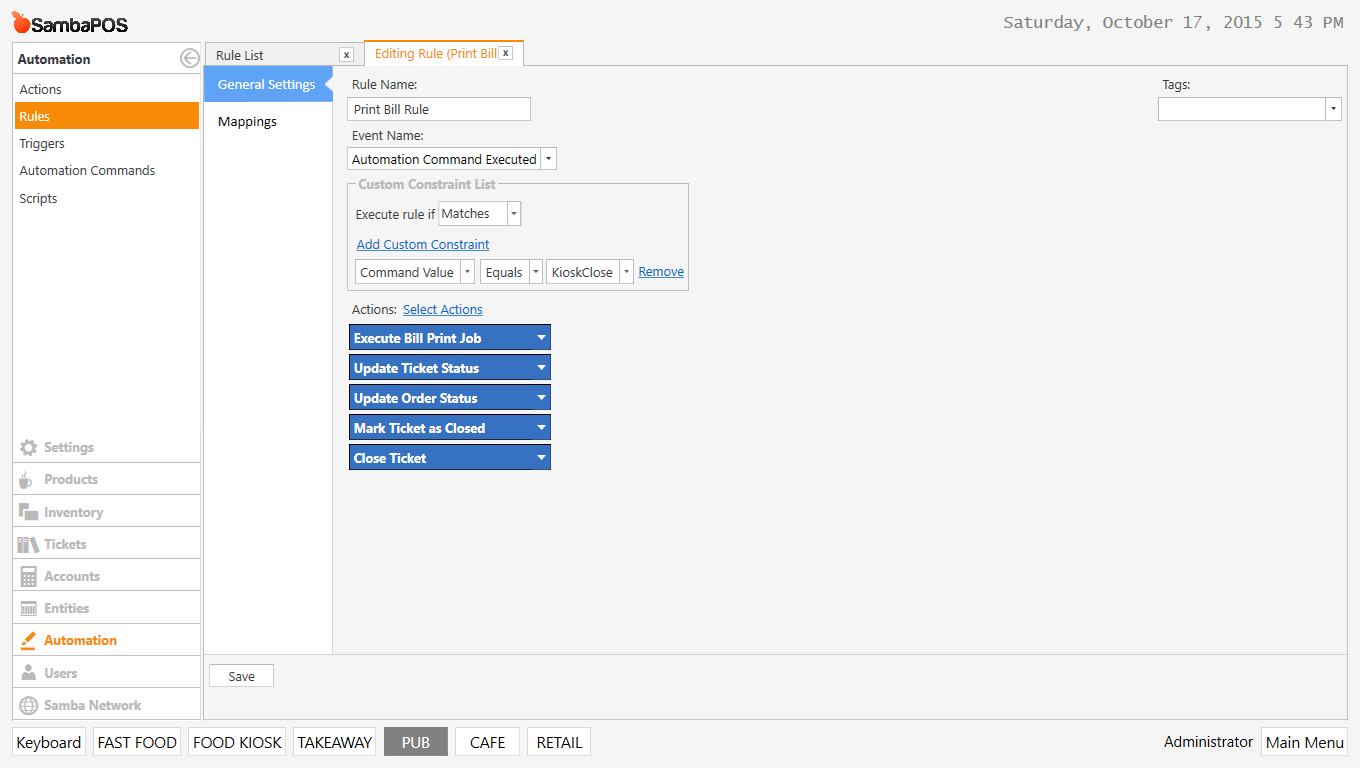

As for the print bill rules screenshot i attached here, do i have to change any of the rules inside?

JTRTech · October 17, 2015, 9:35am

For cancel, as that rule is the first one the flow only goes forward if choosing a payment type, if cancel is just a button then the ask question will close and nothing further will happen and it returns to ticket.

The screenshot rule would need the constraint changing to respond with the show message, which is where the execute automation command action comes in.
You would obviously not need the ask question in that rule as you have put it in the first step rule instead.

Johnson_O · October 17, 2015, 9:38am

Im so sorry i got lost… is it possible for you to do a screenshot on your end and show me ?

JTRTech · October 17, 2015, 9:40am

I’d rather you understood for yourself than just show you, that way if you need to adjust in the future you won’t need help to do that

Plus am not in the office today so replying from my phone.

Which but are you stuck on? Include screenshots if needed and I’ll help you understand.

Johnson_O · October 17, 2015, 9:42am

ok sure… you said to remove the ask question action on the print bill rule and i followed that but now the ask question is not showing after clicking on click here to print your bill

JTRTech · October 17, 2015, 9:45am

Yes, that would make sense.

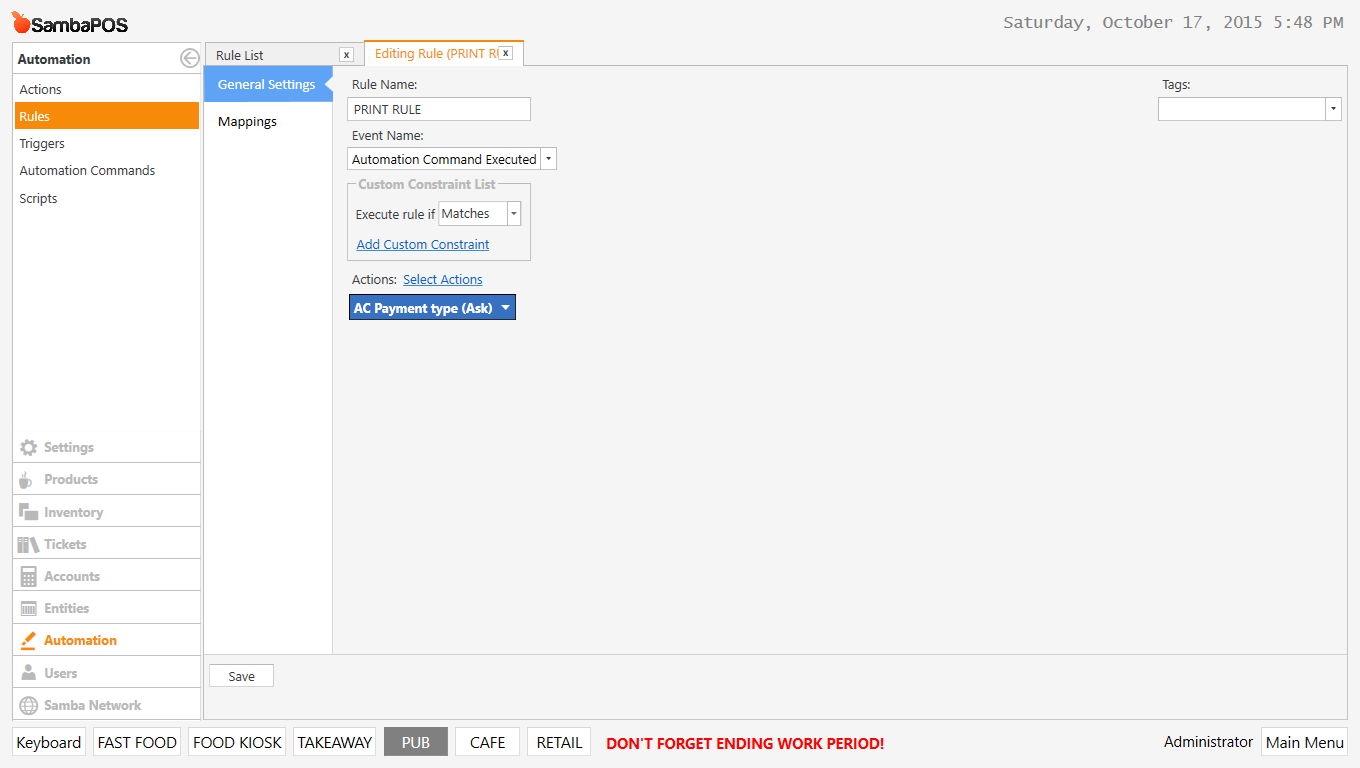

Have you made a new print bill rule with the ask question as per step one in the flow?

Johnson_O · October 17, 2015, 9:48am

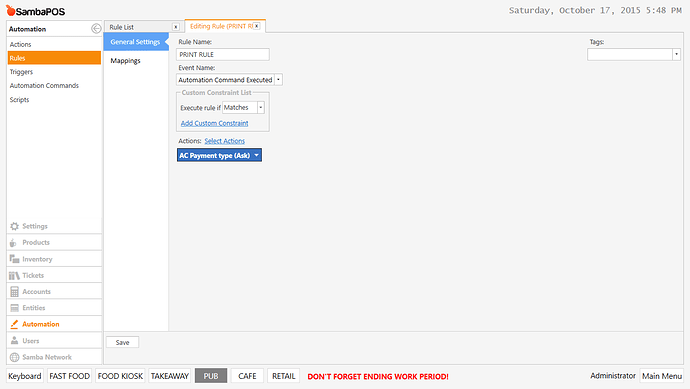

Is there any custom constraint for this new print bill rule?

JTRTech · October 17, 2015, 9:55am

That’s you problem.
That rule need to fire from the print bill button, set it to command name equals Print Bill for constraint.

Johnson_O · October 17, 2015, 9:55am

ok it works now. but all 3 buttons will return to the food order screen. Only CANCEL button is suppose to return to food order screen

JTRTech · October 17, 2015, 9:58am

Ok, show me the ask question action from that first step rule…
Need to see the buttons settings. ENETS= etc

Johnson_O · October 17, 2015, 10:01am

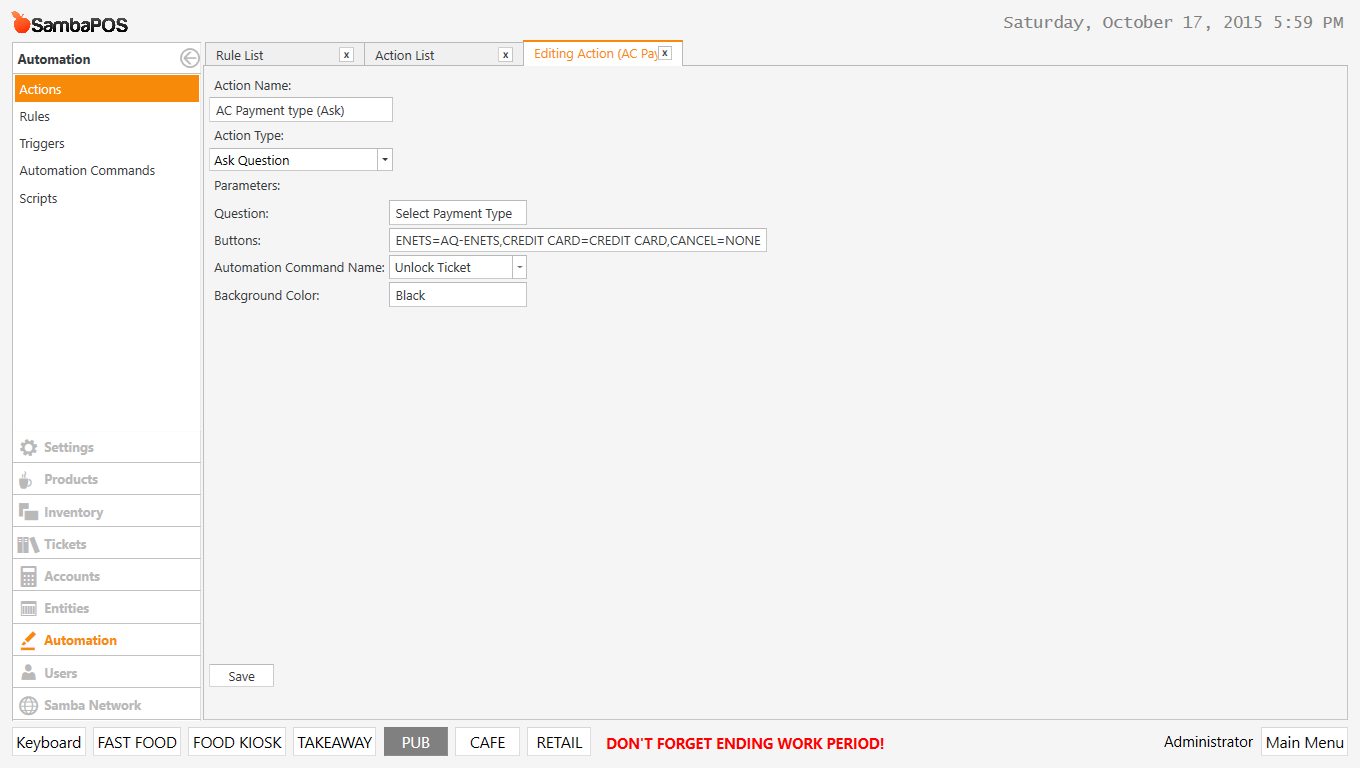

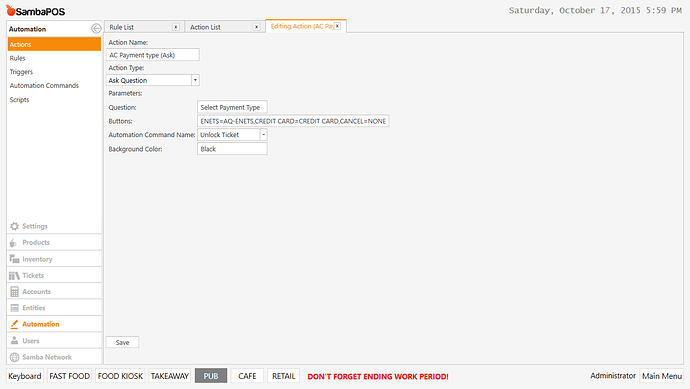

Ok this my ask question action

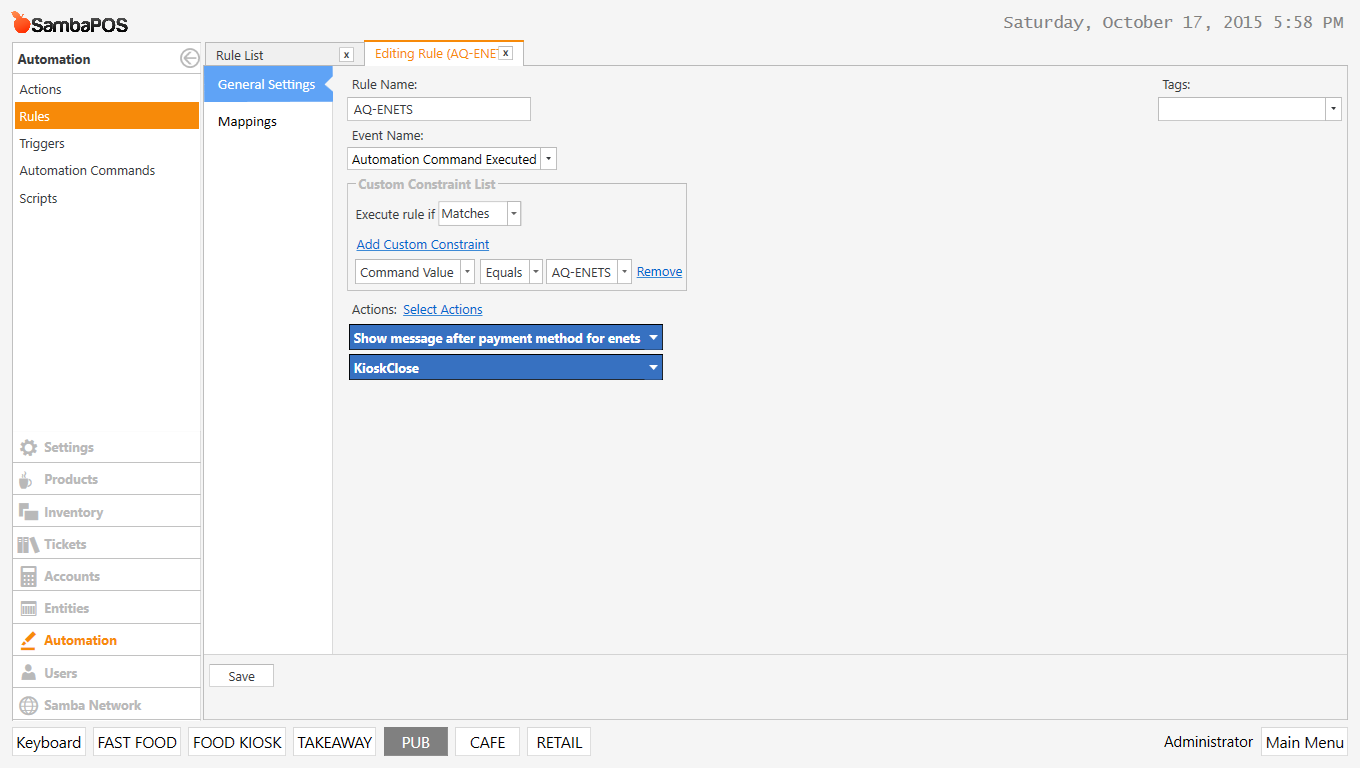

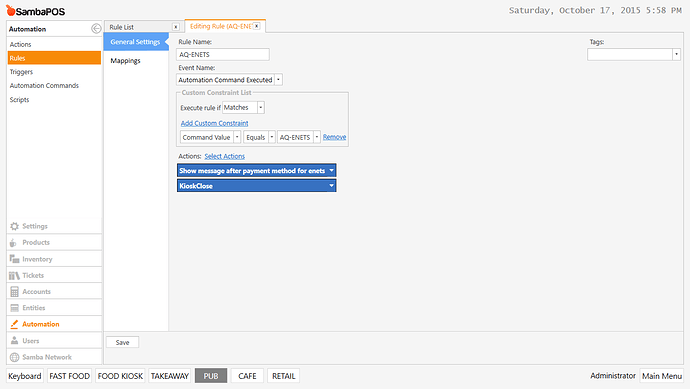

and this my AQ-ENETS rule

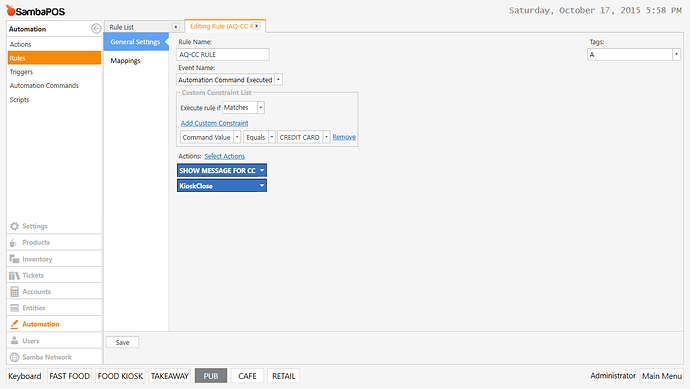

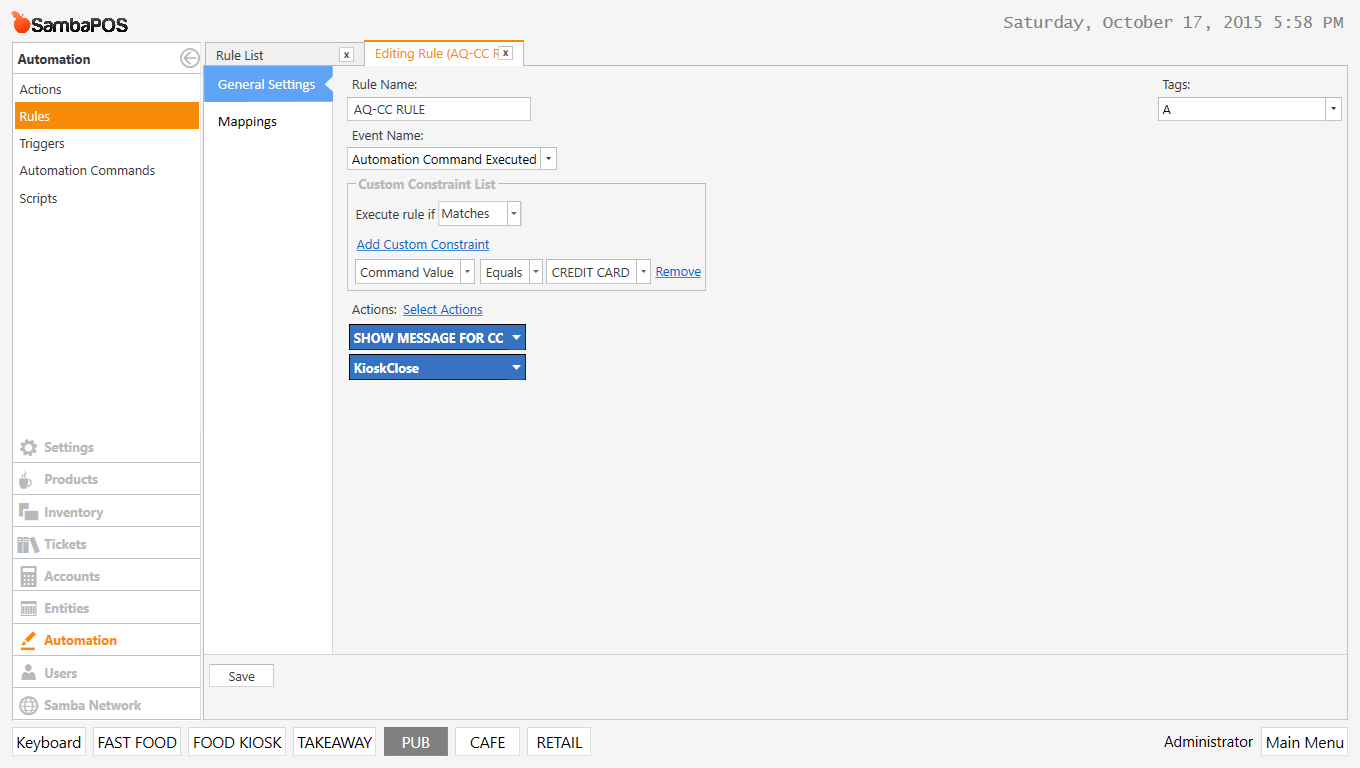

and this is my credit card rule

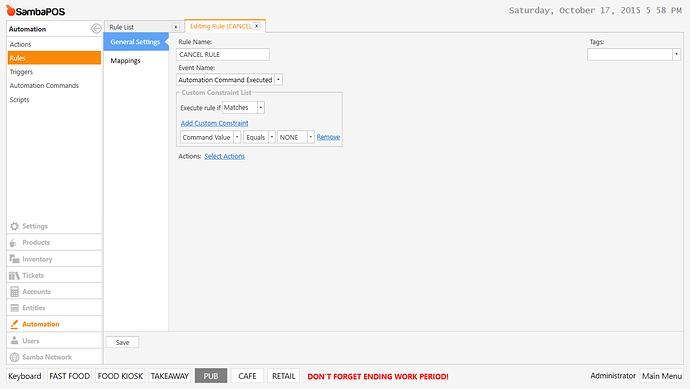

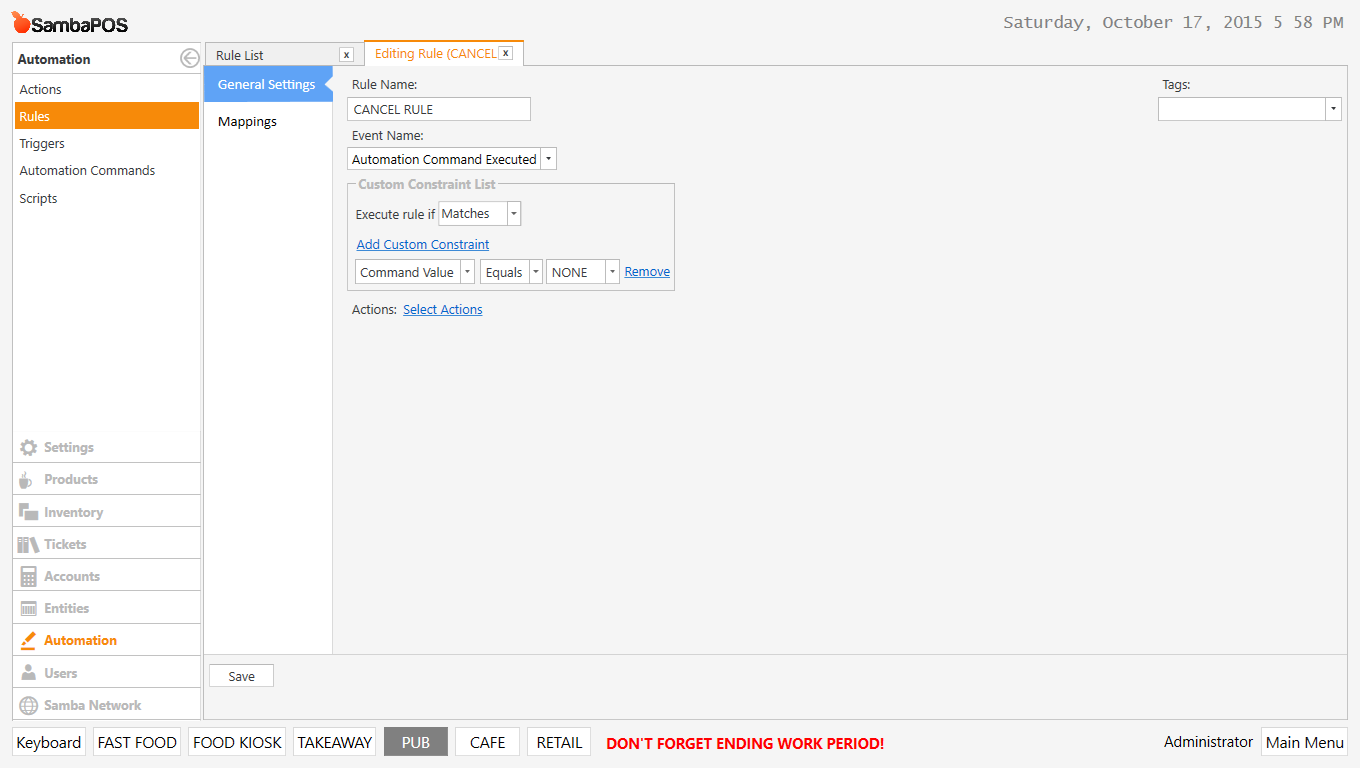

and this is my cancel rule

JTRTech · October 17, 2015, 10:03am

Ok, firstly You don’t need the cancel rule, and cancel doesn’t need an = in the ask question.

Let me look closer at the others and get back to you in a min

Johnson_O · October 17, 2015, 10:05am

Ok I have deleted the =NONE and also the CANCEL rule.

JTRTech · October 17, 2015, 10:08am

What’s with the unlock ticket in the command name in the ask question?

Johnson_O · October 17, 2015, 10:13am

i followed that in a guide somewhere… should i change or remove it?

JTRTech · October 17, 2015, 10:14am

My closest setup to this does not use a value for that, try taking it out and leave it blank.
